Change the Header Site Name to an Image

Jentu on the Digital Garden discord was looking for a way to replace the site name at the top-left corner with an SVG icon instead; here's how I was able to get it to work.

Out of band Modification

This mod is outside of the "safe zone" for the template, meaning that any future updates to the template by Ole will overwrite these changes.

Getting Started

Theoretically, you can do this with any file, not just an SVG; however, SVGs tend to scale a better than other formats, and if you already created an SVG for your favicon, you have one readily available.

  1. Add the image to the /img directory in your DG repo
    1. I tried to have it just use the favicon where it is, but it wasn't getting passed through in the build; however, the /img folder does get passed through, so you can safely add images here.
  2. Update the following following files
    1. navbar.njk
      1. Icon for when filetree is disabled entirely in the Digital Garden settings
    2. filetreeNavbar.njk
      1. Icon for when the filetree is collapsed
    3. filetree.njk
      1. Icon for when the filetree is being displayed (either in full-screen or as a pop-out)

Below are examples where I've copied favicon.svg into the /img folder in my Digital Garden repo, with 1 line of text script on top and bottom. Since we're inserting elements, I want to show where exactly everything goes.

I also provided screenshots to show before/after so you don't have to muck about just to see how it looks. You may need to tweak the pixel sizes to get your image to show optimally.

filetree.njk

Before:

{% endfor %}
 <a href="/" style="text-decoration: none;">
	   <h1 style="text-align:center;">{{meta.siteName}}</h1>
 </a>
 {% for imp in dynamics.filetree.afterTitle %}

Change the Header Site Name to an Image-6.png

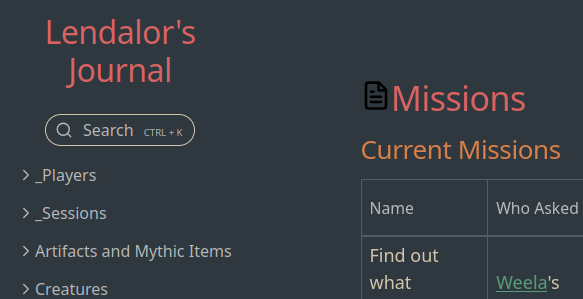

Change the Header Site Name to an Image-7.png

After:

{% endfor %}
	<div style="display: flex; justify-content: center;">
		<a href="/" style="text-decoration: none;">
			<img src='/img/favicon.svg'
				alt="{{meta.siteName}}"
				style="max-width: 100%; width: 180px; height: auto; margin: 15px !important; display: block;">
		</a>
	</div>
 {% for imp in dynamics.filetree.afterTitle %}

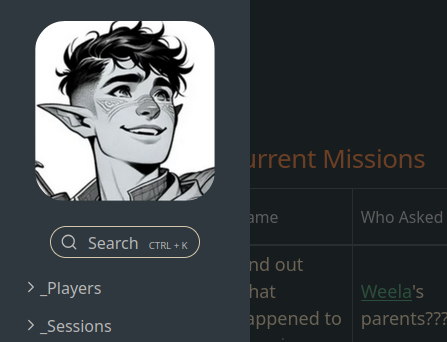

Change the Header Site Name to an Image-2.png

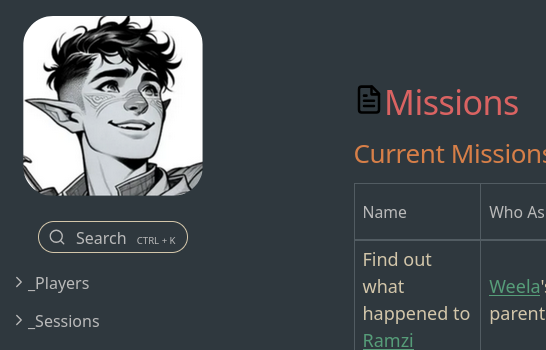

Change the Header Site Name to an Image-3.png

Before:

<div class="navbar-inner">
	<a href="/" style="text-decoration: none;">
		<h1 style="margin: 15px !important;">{{meta.siteName}}</h1>
	</a>
</div>

I don't have a screenshot here because I forgot to test ahead of time and I don't use it anyway, but I trust you to figure out how it looks normally.

After:

<div class="navbar-inner">
	<a href="/" style="text-decoration: none;">
		<img src='/img/favicon.svg'
			alt="{{meta.siteName}}"
			style="max-height: 100%; height: 100px; width: auto; margin: 15px !important; display: block;">
	</a>
</div>

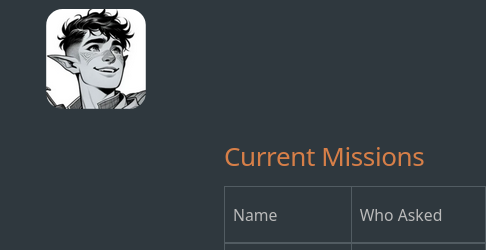

Change the Header Site Name to an Image-4.png

filetreeNavbar.njk

Before:

{% endfor %}
<a href="/" style="text-decoration: none;">
	<h1 style="margin: 15px !important;">{{meta.siteName}}</h1>
</a>
{% for imp in dynamics.filetree.afterTitle %}

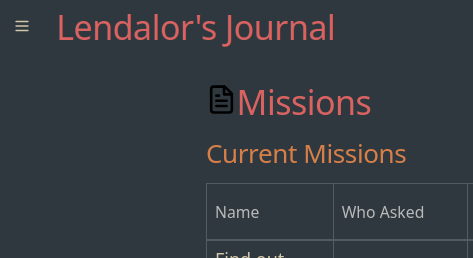

Change the Header Site Name to an Image-5.png

After:

{% endfor %}
	<a href="/" style="text-decoration: none;">
		<img src='/img/favicon.svg'
			alt="{{meta.siteName}}"
			style="max-height: 100%; height: 100px; width: auto; margin: 15px !important; display: block;">
	</a>
{% for imp in dynamics.filetree.afterTitle %}

Change the Header Site Name to an Image-1.png
